Description:
Maximum Load: 500W for 12VDC or 24VDC, 1000W for 36VDC or 48VDC, 2200W for 220VAC or 380VAC
Channel: 2 CH, can control 2 DC motors or 2 linear actuators
Size: 200 x 65 x 50 mm (7.9 x 2.6 x 2.0 inches)

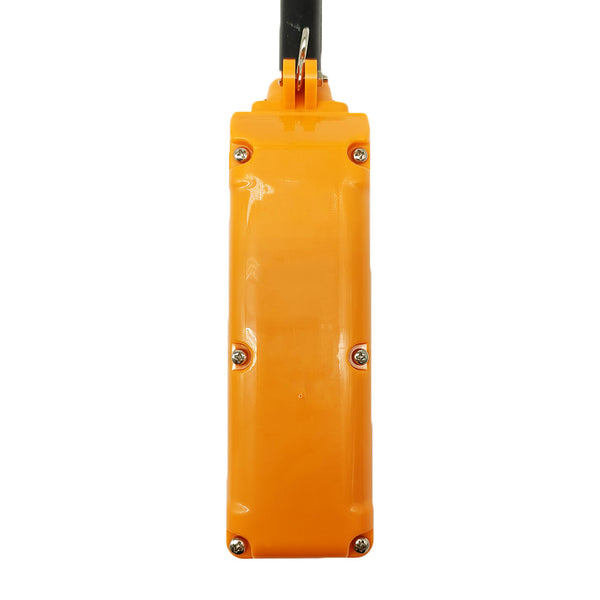

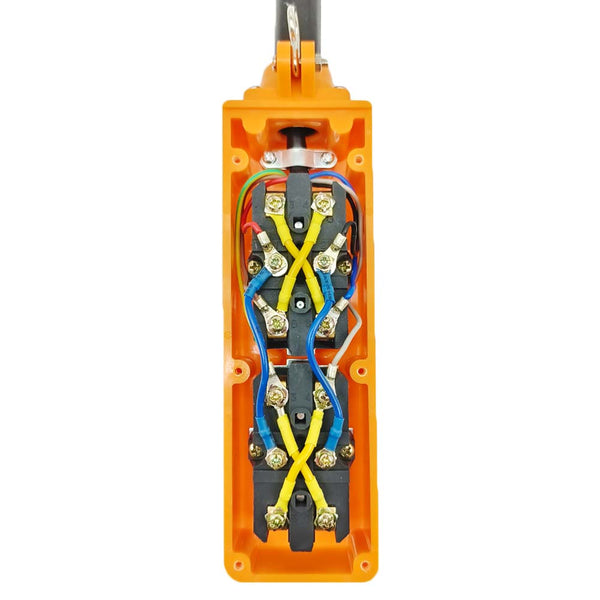

ABS engineering plastic shell.
Equipped with cable protector and waterproof sealing strip, it has good dustproof and rainproof properties.

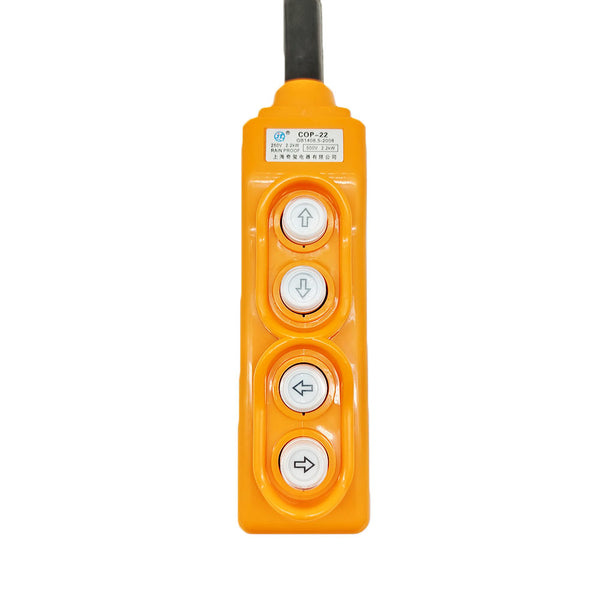

Equipped with four buttons (Up, Down, Left, Right ), momentary work mode.
Suitable for manual control of linear actuators or DC motors.
Connection:

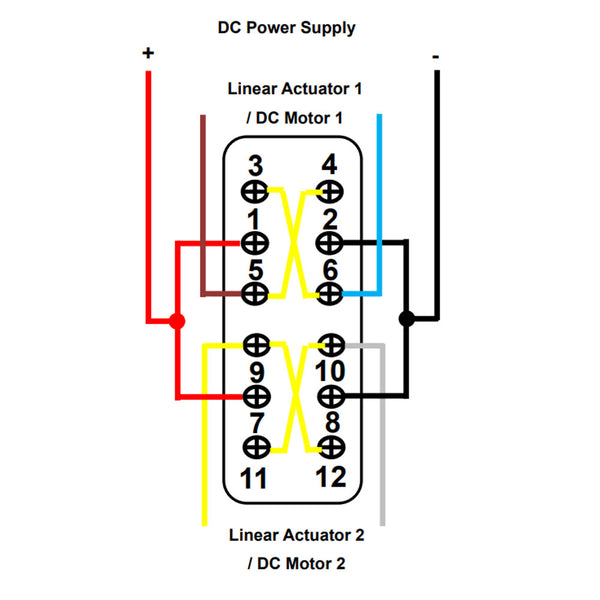

1) Connect the positive pole of the DC power supply to the red wire of the control handle, and connect the negative pole of the DC power supply to the black wire of the control handle.

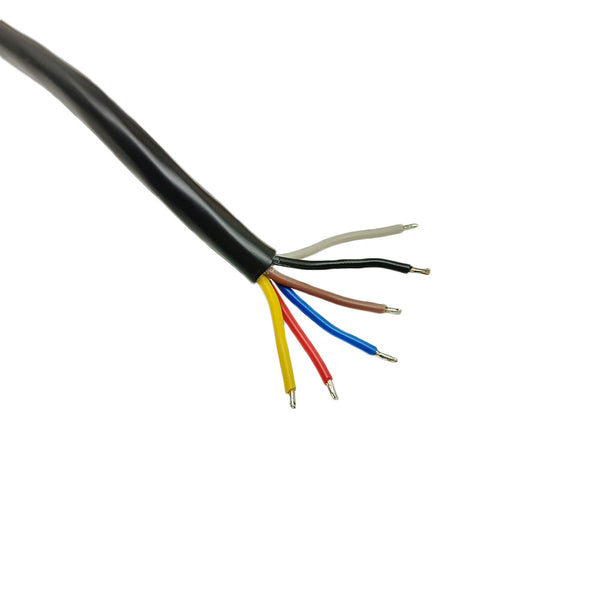

2) Connect one linear actuator or DC motor to the brown and blue wires of the control handle, and the other linear actuator or DC motor to the yellow and white wires of the control handle.
Operation:
1) Press and hold the Up button, motor 1 rotates in positive direction, or linear actuator 1 extends outward.
2) Release the Up button, motor 1 or linear actuator 1 stops.
3) Press and hold the Down button, motor 1 rotates in reversal direction, or linear actuator 1 retracts inward.
4) Release the Down button, motor 1 or linear actuator 1 stops.
5) Press and hold the Left button, motor 2 rotates in positive direction, or linear actuator 2 extends outward.
6) Release the Left button, motor 2 or linear actuator 2 stops.
7) Press and hold the Right button, motor 2 rotates in reversal direction, or linear actuator 2 retracts inward.
8) Release the Right button, motor 2 or linear actuator 2 stops.
