Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

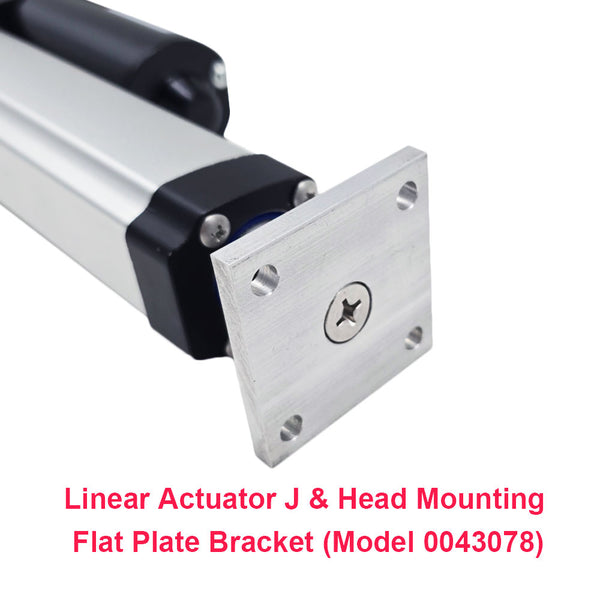

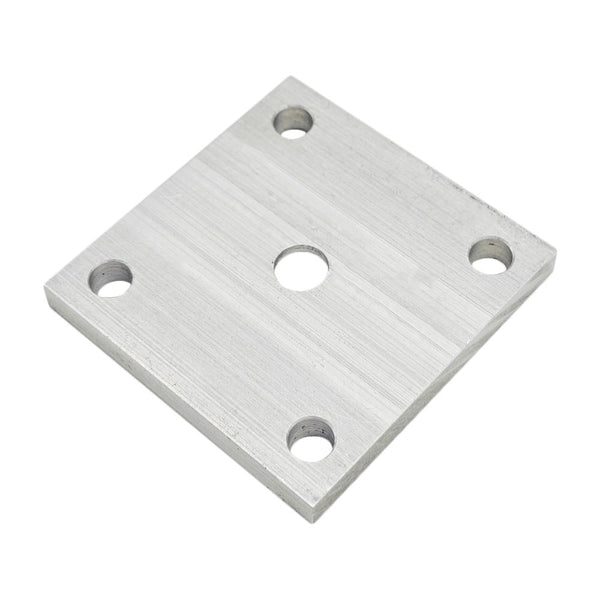

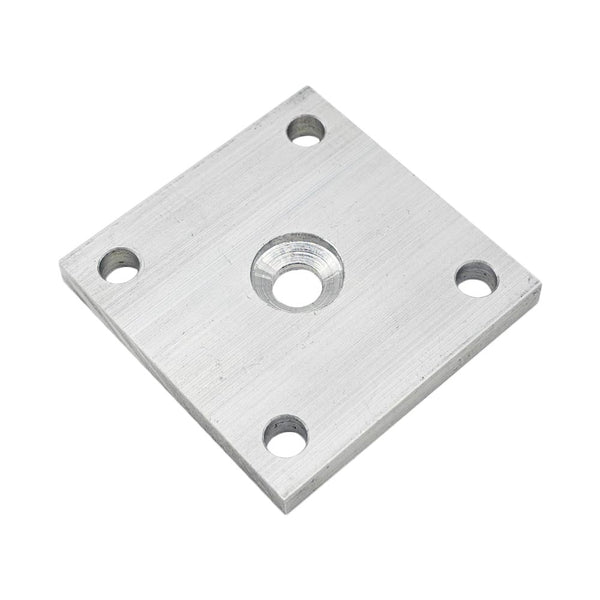

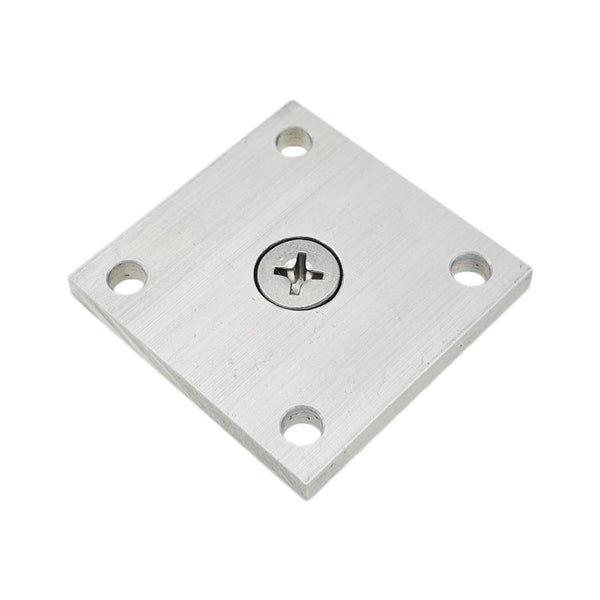

This flat plate bracket is used to mount vertically on the head of the waterproof linear actuator J .

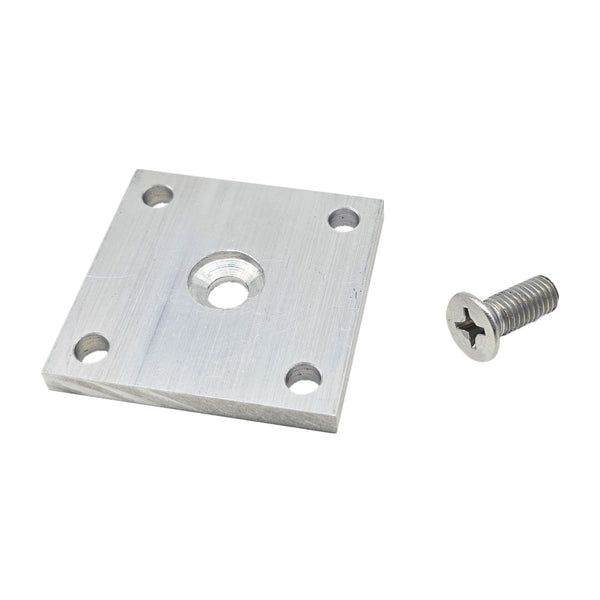

Includes a flat plate bracket and a M8 screw.
Aluminum material.

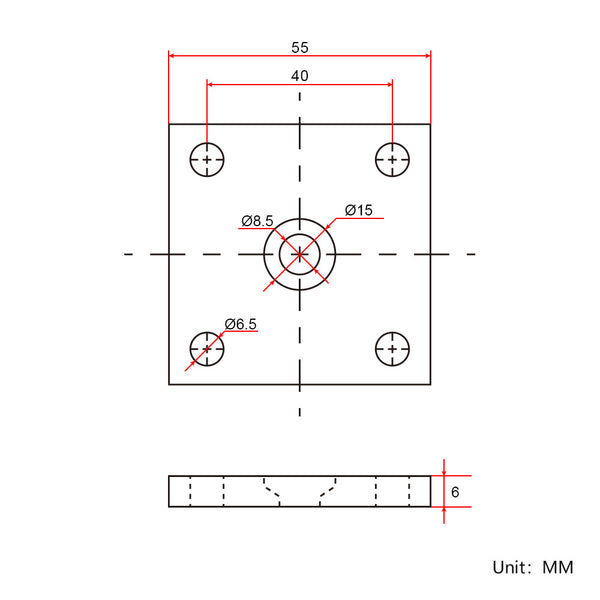

Size: 55 x 55 x 6 mm (2.2 x 2.2 x 0.24 inches)
Diameter of the four outer mounting holes: 6.5mm [0.256 in]
Diameter of the middle mounting hole: 8.5mm [0.335 in]
Weight: 60g
Note:
This flat plate bracket needs to be ordered together with the linear actuator J.

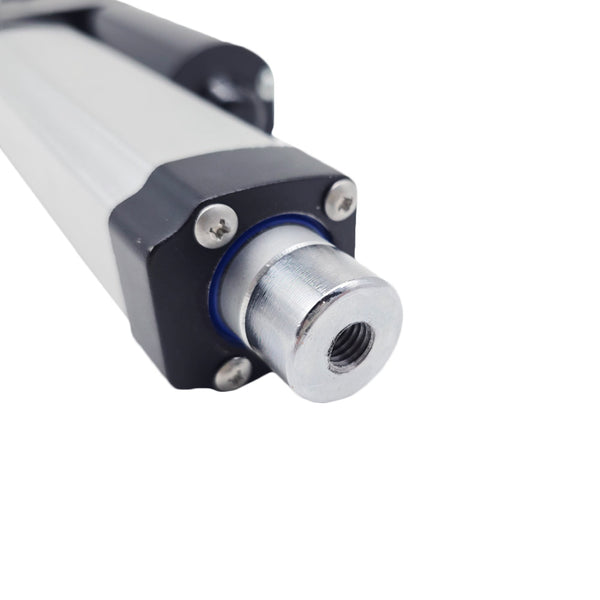

If you order them together, we will customize the front connector of the linear actuator J into the style with a threaded hole, and then fix this flat plate bracket to the front connector with an M8 screw.
The front connector with threaded hole can only be customized by our factory, so if you purchase this flat plate bracket separately, you will not be able to complete the installation.
