10 Inches 250MM 12V 24V Electric Linear Actuator Max Thrust 450 lbs 2000N 200Kgs (Model 0041522)

Regular price $85.00

Shipping calculated at checkout.



How to choose the best buying option for linear actuator? If you have questions about the buying options when purchasing linear actuators, please visit the: Linear Actuator Buying Guide-Detailed Explanation of Options & Purchase Suggestions article to learn more.

How to choose the suitable linear actuator based on the weight of the trapdoor?
Please click here: https://www.electric-linear-actuators.com/blogs/news-1/how-to-choose-the-suitable-linear-actuator-based-on-the-weight-of-the-trapdoor
If you don't know how to calculate it, please contact us for help.

How do you control a linear actuator? Harnessing manual controllers to control linear actuators
Please click here: https://www.electric-linear-actuators.com/blogs/news-1/how-do-you-control-a-linear-actuator-manual-control-linear-actuators

Product Operation Demonstration Video:

Pull Force Test                Thrust Force Test               Working Current Measurement at Different Thrusts

Vertical Linear Actuator Mounting Flat Base            Linear Actuator Limit Switch Wiring

Synchronize 2 Linear Actuators                                Synchronize 4 Linear Actuators

Remote Control Linear Actuator                                 Linear Actuator Manual Override

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1500 mm
We can customize any stroke length from 10mm to 1500mm, such as 380mm, 750mm, 1250mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in limit switch signal output is optional.
Built-in potentiometer is optional.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2, 3 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, and 24V is the most commonly used working voltage.
Stroke range: 10 inches or 250 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use a 12V/10A or 24V/5A power supply to power two linear actuators, or use a 12V/20A or 24V/10A power supply to power three or four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6mm [0.236 in]
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
The front connector style can be customized: the default is an open hole connector, which can be customized with slotted connector, internal thread connector, etc. And you can provide drawings for customization.
The orientation of the front connector is default, we can rotate it 90 degrees during the production according to the customer's needs.
Duty cycle: 20%, max 5mins continuous use
Service life: approx. 25,000 cycles
Power cable: two-core wire for normal linear actuators; five-core wire for linear actuators with built-in potentiometers; six-core wire for linear actuators with built-in Hall sensors; four-core, five-core or six-core wire for linear actuators with built-in limit switch signal outputs.
Cable length of the normal linear actuator: 500±10%mm [20 in], the length can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

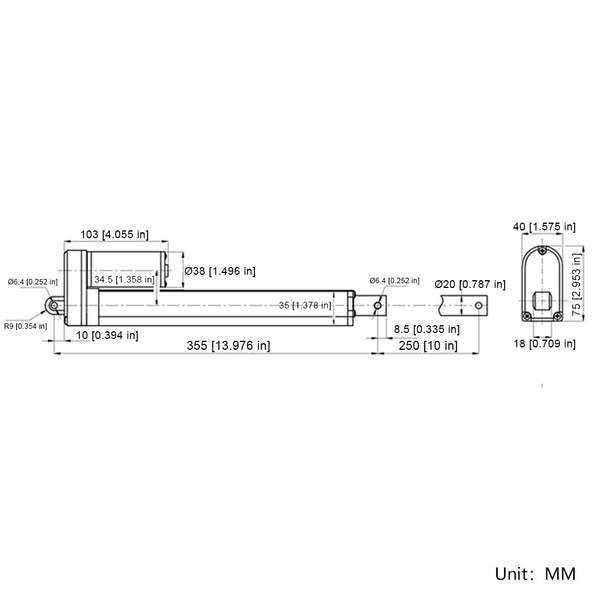

Stroke and Length (Model 0041522):
Stroke and Length (Model 0041522)
Stroke: 250MM.
Rretraction Length: When the linear actuator is fully retracted, the center distance between the two mounting holes is 380MM.
Extension Length: When the linear actuator is fully extended, the center distance between the two mounting holes is 630MM.
The linear actuator has two built-in limit switches, When the linear actuator is fully retracted or fully extended, it will stop automatically.
We can adjust the position of the built-in limit switches during production to meet customer-specified stroke and retraction lengths. For example, specify the stroke length of 230MM and the retraction length of 400MM.
Note: The specified retraction length must be greater than the original length, and the specified stroke must be less than the original stroke.


Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
3. Compatible Mounting Brackets: Bracket A and Bracket C .
4. This linear actuator is also compatible with three flat mounting brackets: Head Fixed Mount Flat Bracket (Model 0043071) , Bottom Fixed Mount Flat Bracket (Model 0043072) and Fixed Mount Flat Base (Model 0043070).

Operation:
When the brown power wire is connected to the positive pole of the DC power supply and the blue power wire is connected to the negative pole of the DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.

Note:
1. If you want to control 2, 3 or 4 linear actuators fully synchronously, you need to purchase built-in Hall effect sensors for each linear actuator, and buy a synchronization controller, please click here to purchase.
2. If you need a power supply to power linear actuator, please click here to purchase.
3. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase. How to connect limit switch? Please watch the connection video.
4. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Different no-load speeds and corresponding maximum thrust:

No-load Speed Full load Speed Maximum Thrust Self-locking Force
5mm/s 2.5mm/s 2000N / 200 kg / 450 lbs 2200N / 220 kg / 490 lbs
10mm/s 5mm/s 1000N / 100 kg / 200 lbs 1100N / 110 kg / 250 lbs
15mm/s 7.5mm/s 800N / 80 kg / 180 lbs 900N / 90 kg / 200 lbs
20mm/s 10mm/s 700N / 70 kg / 160 lbs 800N / 80 kg / 180 lbs
30mm/s 15mm/s 500N / 50 kg / 110 lbs 600N / 60 kg / 130 lbs
50mm/s 25mm/s 300N / 30 kg / 60 lbs 350N / 35 kg / 80 lbs
100mm/s 50mm/s 150N / 15 kg / 30 lbs 100N / 10 kg / 20 lbs
160mm/s 80mm/s 100N / 10 kg / 20 lbs 50N / 5 kg / 10 lbs


Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
