How to use the hand controller to control linear actuator
Description:
Maximum Load: 500W for 12VDC or 24VDC, 1000W for 36VDC or 48VDC, 2200W for 220VAC or 380VAC
Size: 148mm x 65mm x 70mm

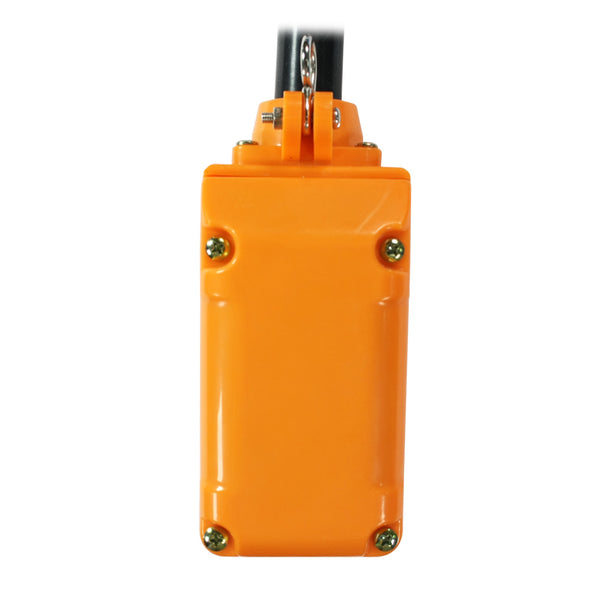

ABS engineering plastic shell.

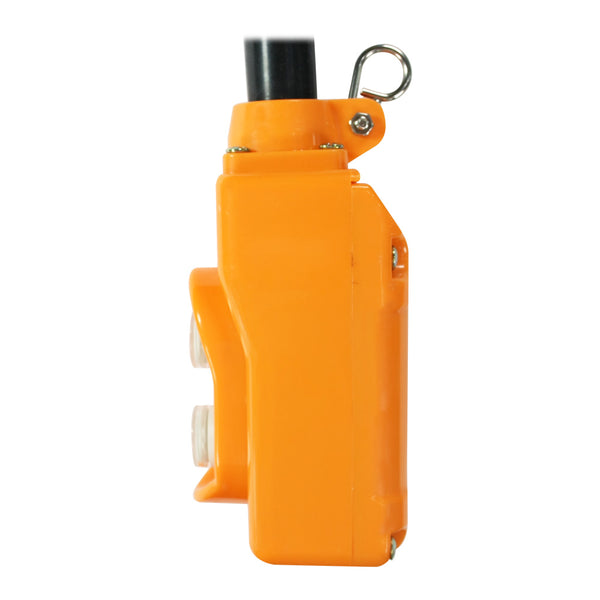

Equipped with cable protector and waterproof sealing strip, it has good dustproof and rainproof properties.

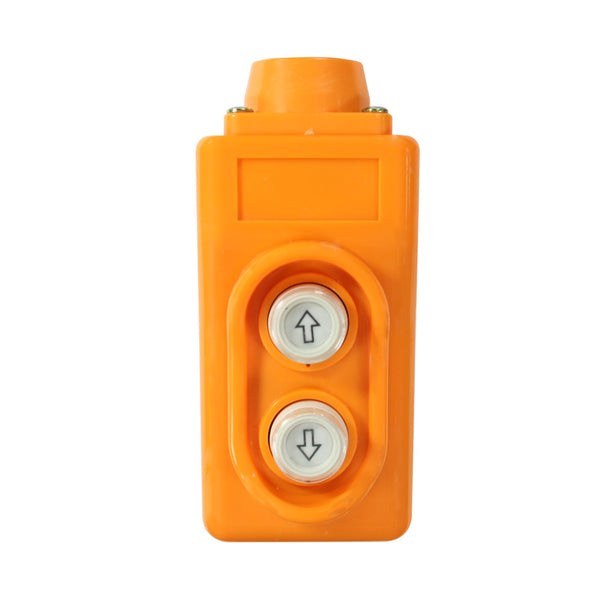

Equipped with two buttons (Up and Down), momentary work mode.
Suitable for manual control of linear actuators or DC motors.
Suitable for DC 12V, 24V, 36V, 48V linear actuators, such as linear actuators C, C2, D, F.
Connection:

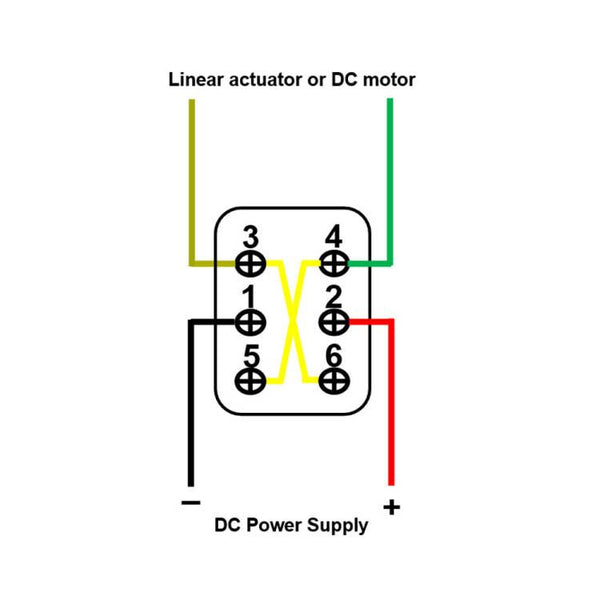

1) Connect DC power supply to black and red wires of control handle
2) Connect linear actuator or DC motor to green and orange wires of control handle.
Operation with linear actuator:
1) Press and hold the "Up" button, linear actuator extends outward; Release the button, linear actuator stops.
2) Press and hold the "Down" button, linear actuator retracts inward; Release the button, linear actuator stops.
Operation with DC motor:
1) Press and hold the "Up" button, motor rotates in positive direction; Release the button, motor stops.
2) Press and hold the "Down" button, motor rotates in reversal direction; Release the button, motor stops.
