12V 24V High Performance Linear Actuator F One-Control-Two Synchronous Control Kit (Model 0043055)

Other Video:

Linear Actuator F Operation Demonstration

Demonstration of Opening Cellar Door Using Two Linear Actuators

How to choose the suitable linear actuator based on the weight of the trapdoor?
Please click here: https://www.electric-linear-actuators.com/blogs/news-1/how-to-choose-the-suitable-linear-actuator-based-on-the-weight-of-the-trapdoor
If you don't know how to calculate it, please contact us for help.

The stroke range of linear actuators is 0.4 ~ 79 inches or 10 ~ 2000 mm. We can also customize any stroke length from 10mm to 2000mm, such as 770mm, 1250mm, 1850mm and so on.
If you want to view detailed information of linear actuators with different strokes, such as detailed drawings and dimensional drawings, please click the following link to view:
50MM (2 inches) , 100MM (4 inches) , 150MM (6 inches) , 200MM (8 inches) , 250MM (10 inches) , 300MM (12 inches) , 350MM (14 inches) , 400MM (16 inches) , 450MM (18 inches) , 500MM (20 inches) , 600MM (24 inches) , 700MM (28 inches) , 800MM (32 inches) , 900MM (36 inches) , 1000MM (40 inches)

Package Include:
2 x Electric Linear Actuator F With Hall Effect Sensor

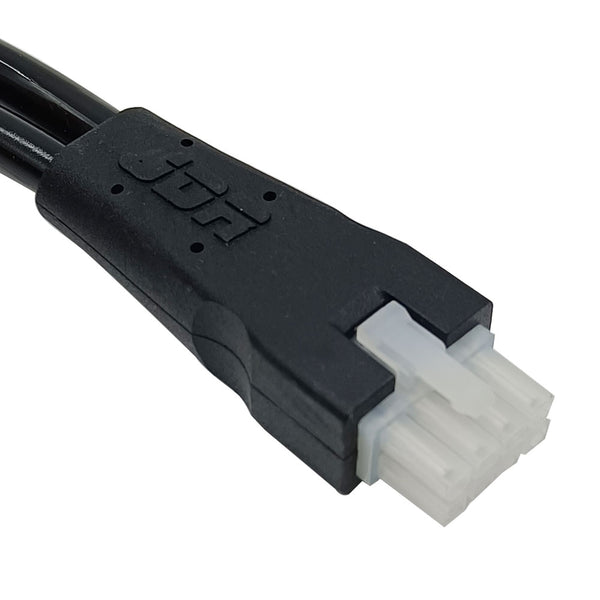

1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuator F)

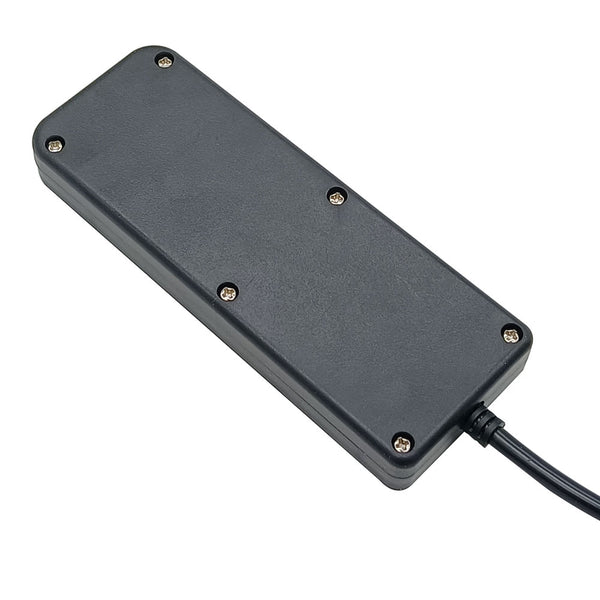

1 x Control Handle

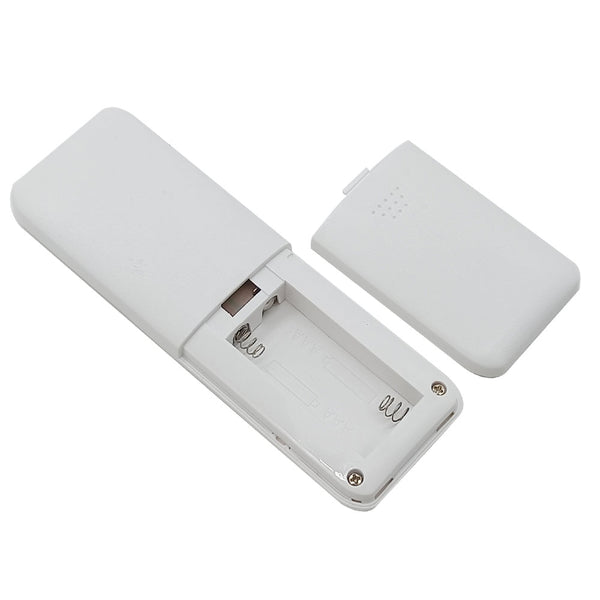

1 x Remote Control
1 x User manual
Note: The synchronous controller has two control modes, please select a control mode you need when ordering.


The information for electric linear actuator:

Application:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and aluminum alloy outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 12000N / 1200 Kgs / 2700 lbs
Multiple speed options, from 6 mm/second to 60 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm, 1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 0.4 ~ 79 inches or 10 ~ 2000 mm
Optional speed: 6±1mm/s, 8±2mm/s, 12±2mm/s, 16±3mm/s, 20±4mm/s, 25±5mm/s, 38±6mm/s, 60±12mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 12000N / 1200 Kgs / 2700 lbs at 6mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 3~4A at 12V or 1.5~2A at 24V
Full load current: 15~22A at 12V or 8~12A Hat 24V
Please use a 12V/30A or 24V/15A power supply to power a linear actuator, or use a 12V/50A or 24V/25A power supply to power two linear actuators, or use a 12V/100A or 24V/50A power supply to power four linear actuators.
Shaft diameter: 29mm
Mounting holes diameter: 13mm
Housing material: Cast aluminum alloy
Stroke rod material: Stainless steel
Gear material: Steel alloy
Motor type: Brushed DC Motor
Duty cycle: 10%, max 2mins continuous use

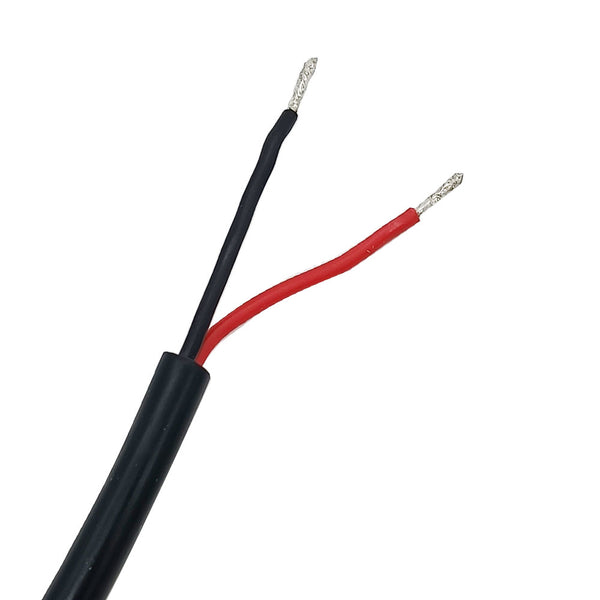

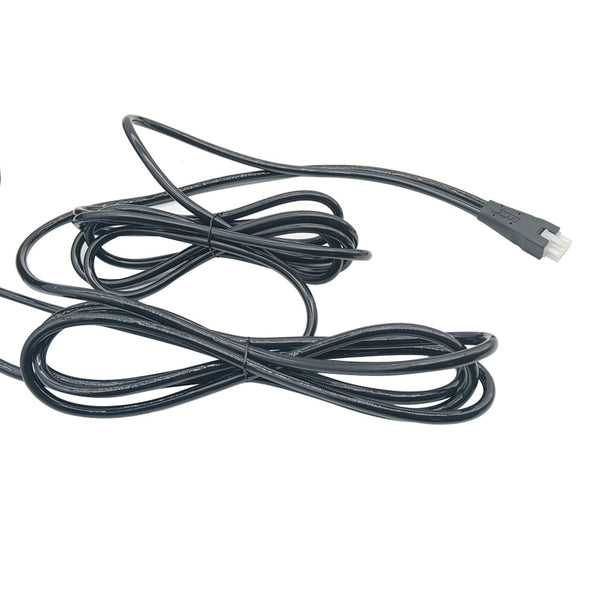

Plug standard: Ordinary Two-core Wire, or Six-core Wire (with Hall effect sensor)
Certifications: CE
Environment temperature: -25℃ to 85℃
Operating noise: about 65dB~80dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP66

Different speeds and corresponding maximum thrust:
　

Note:
1. The above data is the maximum load capacity that can be obtained when each linear actuator runs in the vertical direction. The maximum load capacity of the entire synchronous system is the sum of the maximum load capacities of the two linear actuators. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

The information for synchronous controller:

Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two or four electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

Working principle:
If you want to use a synchronous controller to operate 2 or 4 linear actuators fully synchronously, you will need to add built-in Hall effect sensors to each linear actuator. And when you purchased Hall effect sensor along with linear actuator, we will install Hall effect sensor to linear actuator for you.
When 2 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

Feature:
It can operate two electric linear actuators F to run completely synchronously.
Wired control via a control handle.
Wireless control via a remote.
The LED display on the control handle will display the stroke position in real time.
Three function buttons: ▲, ▼ and RST.

Parameters:
Working Voltage: 12±1VDC (suitable for 12V linear actuator), or 24±2VDC (suitable for 24V linear actuator)
Working Frequency: 433.92 MHz
Working Distance: 50m / 150ft (theoretically)
Two selectable control modes: Interlocking mode or Momentary mode, please select a control mode you need when ordering.
Operating Temperature: -20°C ~ +70°C
Case size: 265 x 94 x 40 mm (10.5 x 3.7 x 1.6 inches)

Connection:
1) Connect the positive pole of DC power supply to the red wire of the controller and connect the negative pole of DC power supply to the black wire of the controller.
2) Plug two linear actuators to the controller.
3) Plug the control handle to the controller.

Operation in different control modes: (The synchronous controller has two control modes, please select a control mode you need when ordering.)

1. Momentary Control Mode:
1.1 Operation via the control handle:
1) Press and hold the ▲ button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop.
2) Press and hold the ▼ button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop.
3) You can also briefly press the <RST> button, two linear actuators will retract inwards to their original positions simultaneously.
4) The LED display on the control handle will display the stroke position in real time. For example, if the number 030 means that the linear actuators have reached the stroke position of 30CM.

1.2 Operation via the remote control:
1) Press and hold the ▲ button of the remote control, two linear actuators extend outward at the same time; Release the button, two linear actuators stop.
2) Press and hold the ▼ button of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop.

2. Interlocking control Mode:
2.1 Operation via the control handle:
1) Press the button ▲ of the control handle, two linear actuators extend outward at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
2) Press the button ▼ of the control handle, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
3) You can also briefly press the <RST> button, two linear actuators will retract inwards to their original positions simultaneously.
4) The LED display on the control handle will display the stroke position in real time. For example, if the number 030 means that the linear actuators have reached the stroke position of 30CM.

2.2 Operation via the remote control:
1) Press the button ▲ of the remote control, two linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.
2) Press the button ▼ of the remote control, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press any button to stop two actuators at the same time.

Reset Function:
When the LED display on the control handle shows the fault code "RST" or "E05", you need to reset the system as follows.
Reset operation: Press and hold the ▼ button of the control handle for 5-10 seconds until all linear actuators are reset to the bottom, and the LED display on the control handle shows "000", then release the ▼ button.

Fault Display Code Descriptions:
The control handle is equipped with an LED display screen.
LED screen displays "RST": Abnormal state, reset operation required.
LED screen displays "E01": Linear actuator 1 overload, check if the load is too large.
LED screen displays "E02": Linear actuator 2 overload, check if the load is too large.
LED screen displays "E05": Two linear actuators are not synchronized, and you need to perform a reset operation.
LED screen displays "E06": Input power under-voltage, check if the power supply voltage or power matches the linear actuator, replace with a suitable power supply.
LED screen displays “E11”: Linear actuator 1 HALL signal abnormal, check if the connection cable is in poor contact, replace the linear actuator or connection cable.
LED screen displays “E12”: Linear actuator 2 HALL signal abnormal, check if the connection cable is in poor contact, replace the linear actuator or connection cable.

Note:
1. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator. This kit does not contain fixed mounting brackets, please buy them from the drop down menu.
2. You need to use a DC12V/50A or DC24V/25A switching power supply to power this kit. This kit does not contain this power supply, please buy it from the drop down menu.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 6~10 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
