12V 24V 2000N Linear Actuator A One-Control-Two Synchronous Control Kit (Model 0043049)

Other Video:

How to Pair Remote to Synchronization Controller

Demonstration of Opening Cellar Door Using Two Linear Actuators

The stroke range of linear actuators is 0.4 ~ 40 inches or 10 ~ 1000 mm. We can also customize any stroke length from 10mm to 1000mm, such as 225mm, 660mm, 950mm and so on.

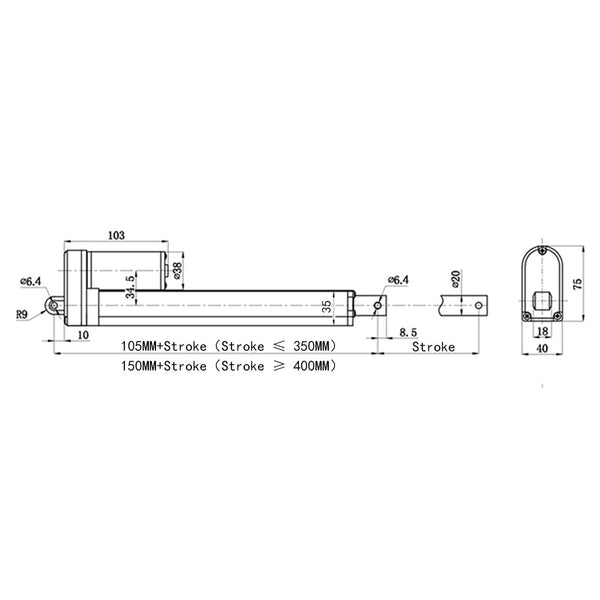

If you want to view detailed information of linear actuators with different strokes, such as detailed drawings and dimensional drawings, please click the following link to view:
30MM (1.2 inches) , 50MM (2 inches) , 100MM (4 inches) , 150MM (6 inches) , 200MM (8 inches) , 250MM (10 inches) , 300MM (12 inches) , 350MM (14 inches) , 400MM (16 inches) , 450MM (18 inches) , 500MM (20 inches) , 600MM (24 inches) , 700MM (28 inches) , 800MM (32 inches) , 900MM (36 inches) , 1000MM (40 inches)

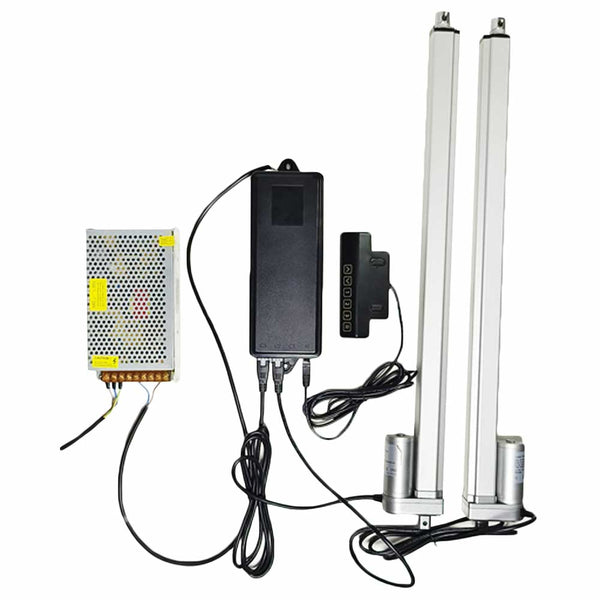

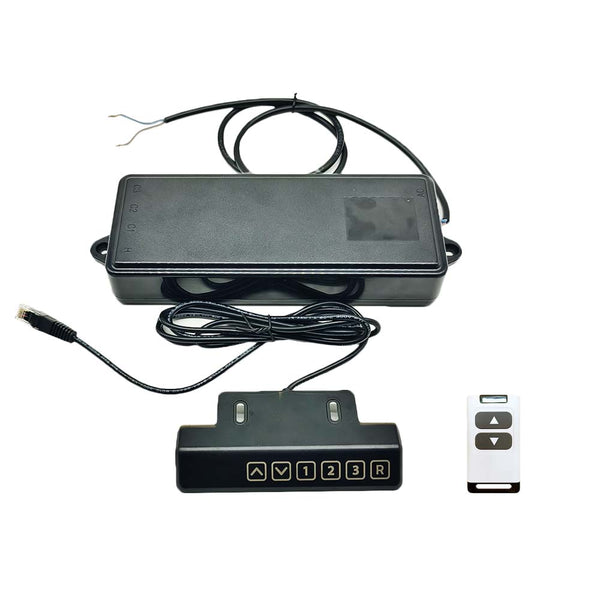

Package Include:

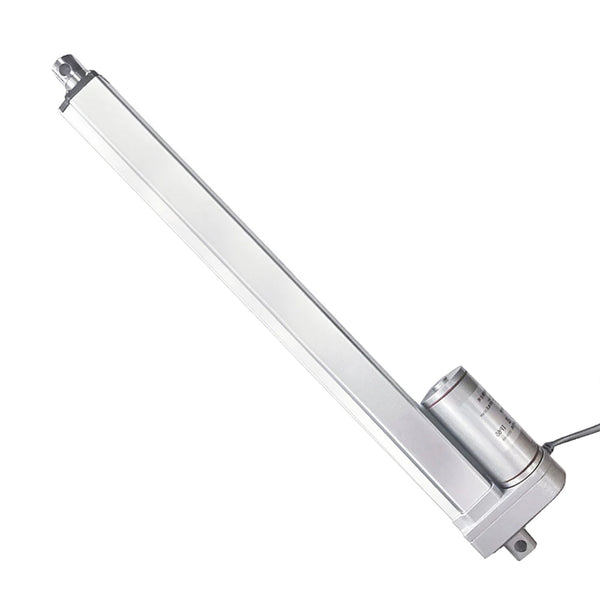

2 x Electric Linear Actuator A With Hall Effekt Sensor

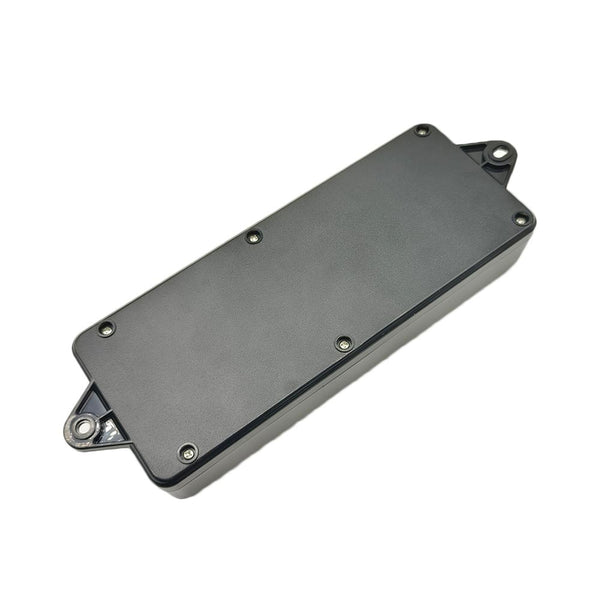

1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuators A)

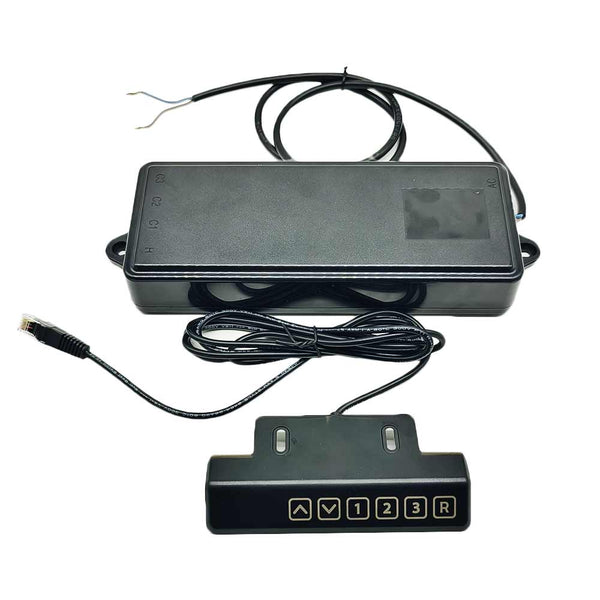

1 x Touch Control Handle

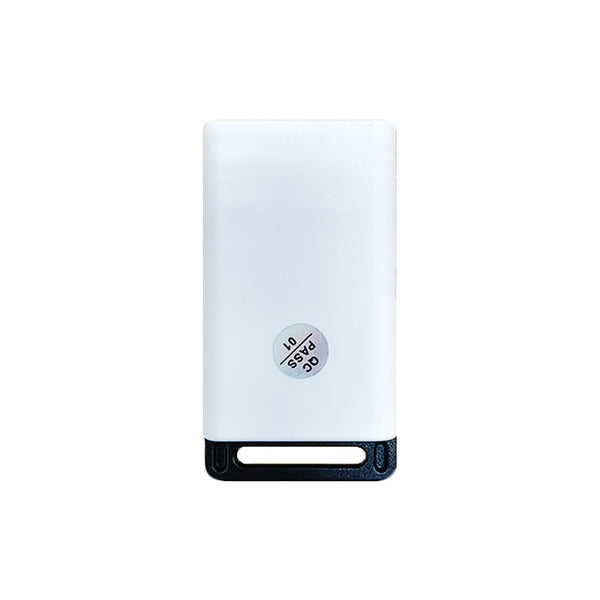

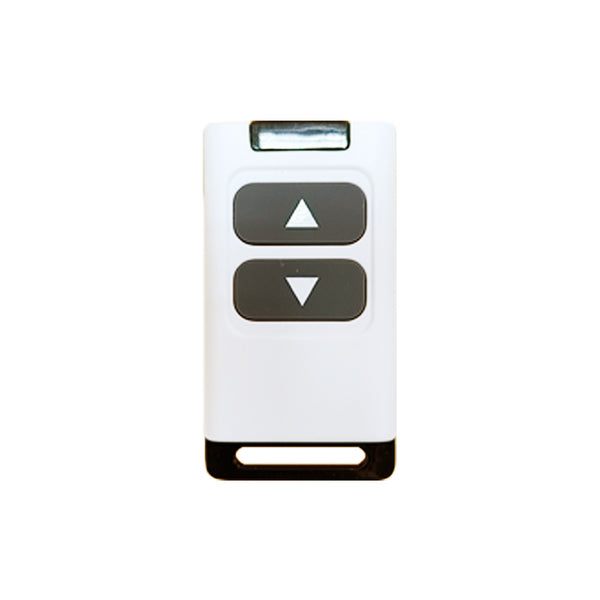

1 x Remote Control CF-2 (Model 0043064)
1 x User manual
Note: The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.


The information for electric linear actuator:

Other Video:
Use Synchronization Controller to Synchronise Two Electric Linear Actuators A

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs, and other electrical equipment. It can open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments.
Metal gearbox, high strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs.
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm, 660mm, 950mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 0.4 ~ 40 inches or 10 ~ 1000 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use a 12V/10A or 24V/5A power supply to power two linear actuators, or use a 12V/20A or 24V/10A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing material: Aluminum Alloy
Stroke rod material: Aluminum Alloy
Gear material: Steel Alloy
Motor type: Brushed DC Motor
Duty cycle: 20%, max 5mins continuous use
Power cable: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

Different no-load speeds and corresponding maximum thrust:

Note:
1. The above data is the maximum load capacity that can be obtained when each linear actuator runs in the vertical direction. The maximum load capacity of the entire synchronous system is the sum of the maximum load capacities of the two linear actuators. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

The information for synchronous controller:

Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two or four electric actuators. Since the high-speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

Working principle:
If you want to use a synchronous controller to operate 2 or 4 linear actuators fully synchronously, you will need to add built-in Hall effect sensors to each linear actuator. And when you purchased Hall effect sensor along with linear actuator, we will install Hall effect sensor to linear actuator for you.

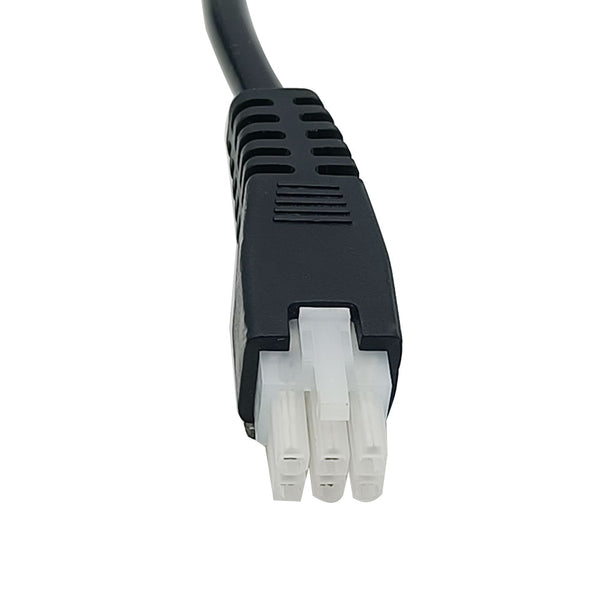

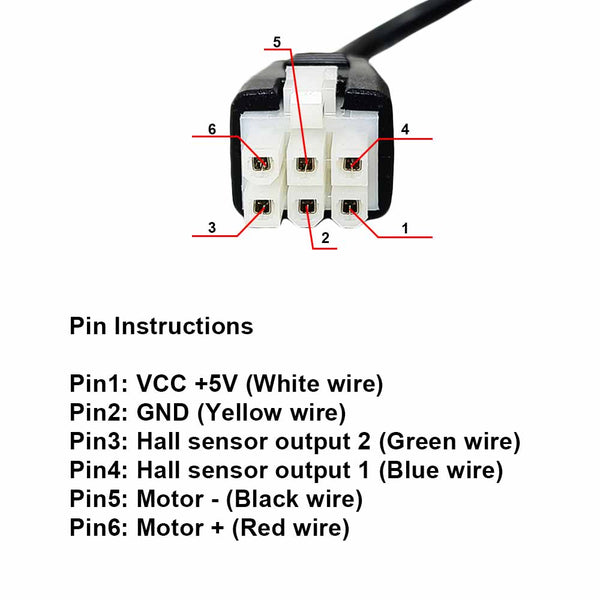

When 2 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

Feature:
It can operate two electric linear actuators A to run completely synchronously.
Wired control via a touch control handle or a manual switch (Model 0040025 optional).
Wireless control via a remote.
The LED display on the control handle will display the stroke position in real time.
Six touch function buttons: ▲, ▼, 1, 2, 3 and R.
Buttons ▲ and ▼ are used to operate the linear actuators extension and retraction.
Buttons 1, 2 and 3 are used to automatically operate the linear actuators to three pre-memorized positions.
Button R is the reset button and is used to reset the system in case of an error.
With wired control terminals: You can connect manual switches to control linear actuators.
When linear actuators move close to the end position, they will automatically slow down to protect themselves.
When linear actuators are fully retracted, they will retain 1MM of travel to protect themselves.

Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Number of connecting linear actuators: 2
Maximum output current: 10A / channel
Working Frequency: 433.92 MHz
Two selectable control modes: Interlocking mode or Momentary mode, please select a control mode you need when ordering.
Working Distance: 30m / 90ft (theoretically)
Operating Temperature: -20°C ~ +70°C

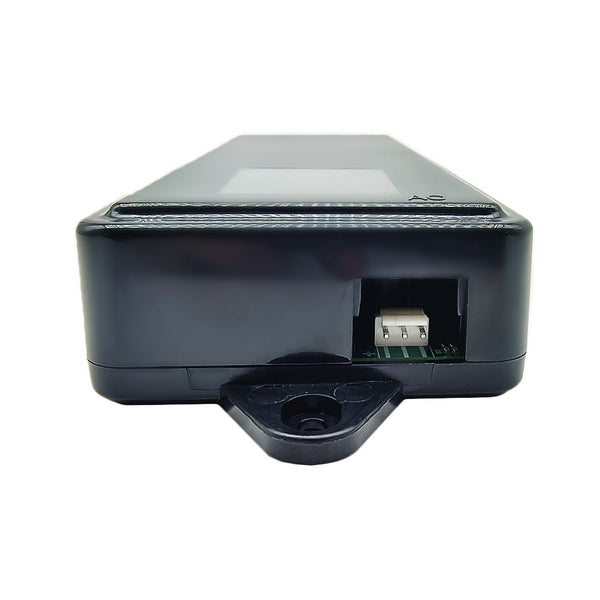

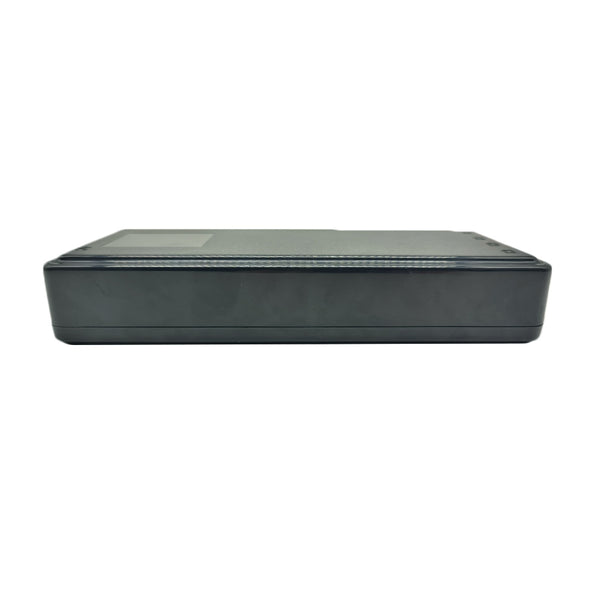

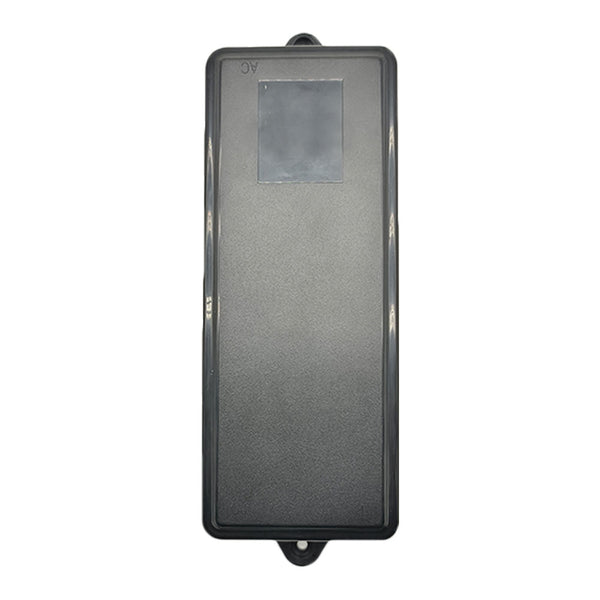

Case size: 240 x 95 x 43 mm (9.4 x 3.7 x 1.7 inches)

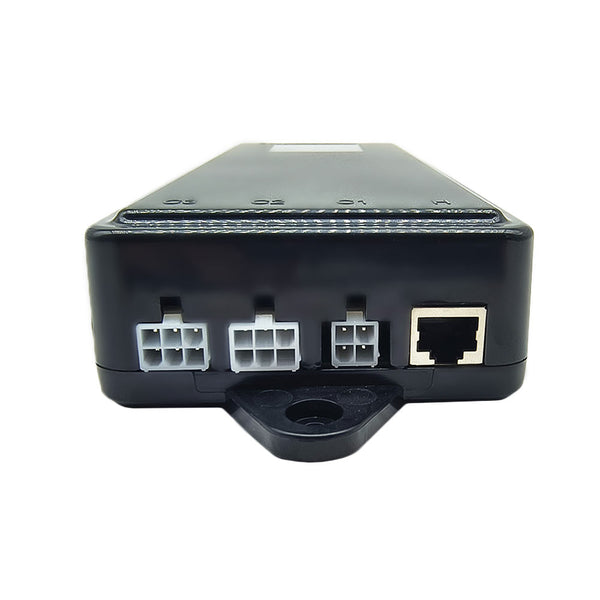

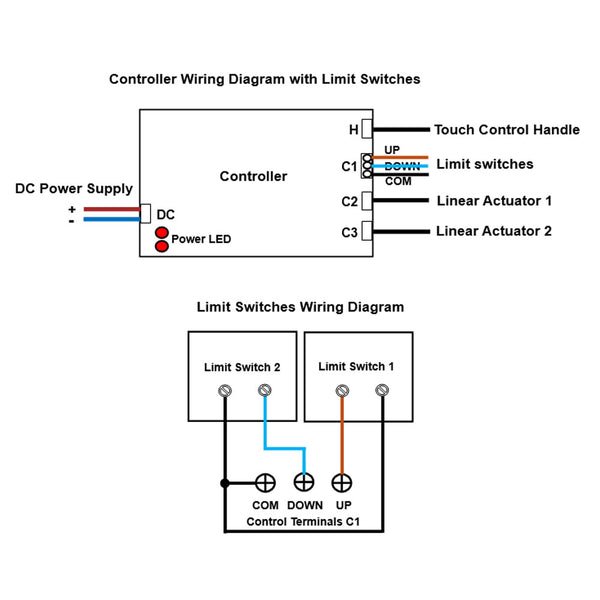

Connection:

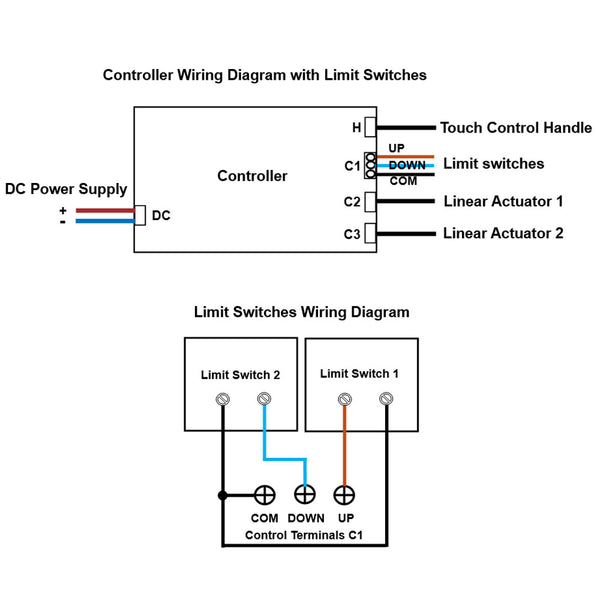

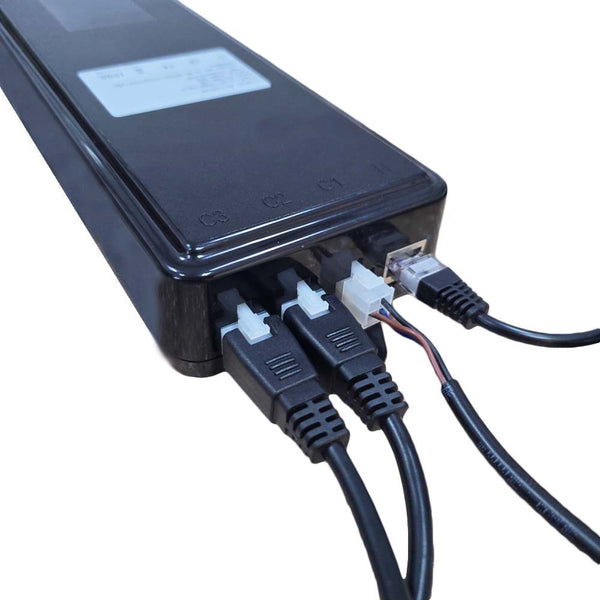

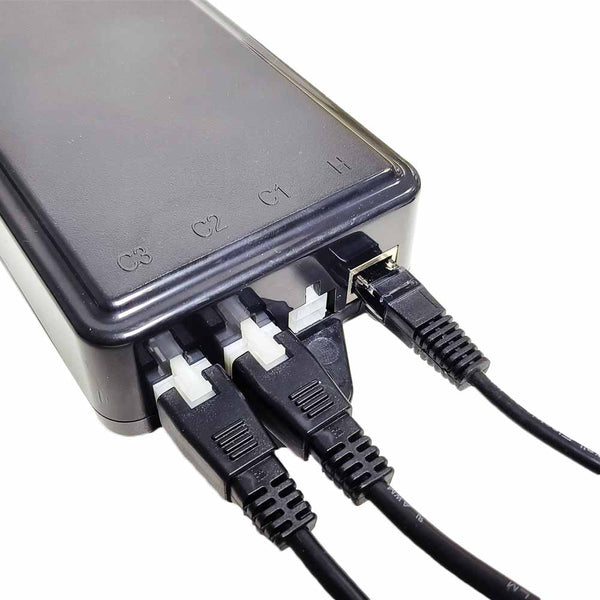

1) Plug the touch control handle into the ports H of the controller.
2) Plug two linear actuators into the ports C2 and C3 of the controller.
3) Plug the manual switch into the ports C1 of the controller if you need to use an external manual switch.

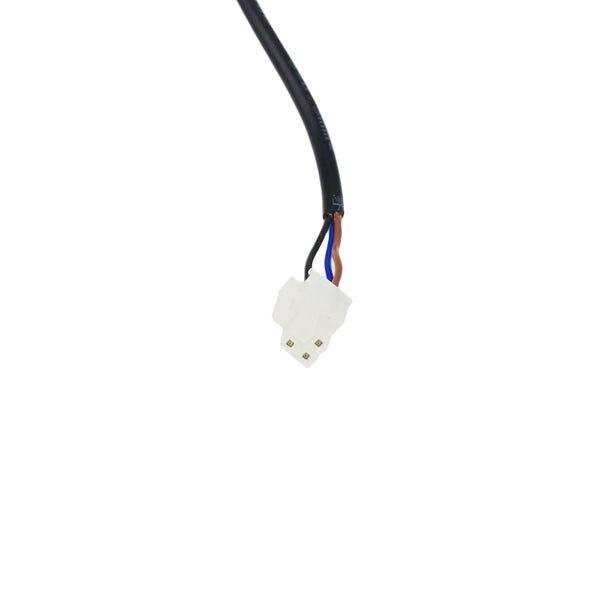

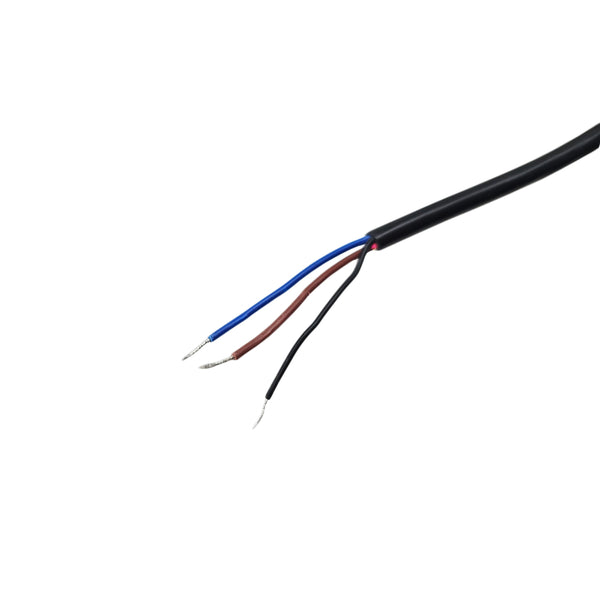

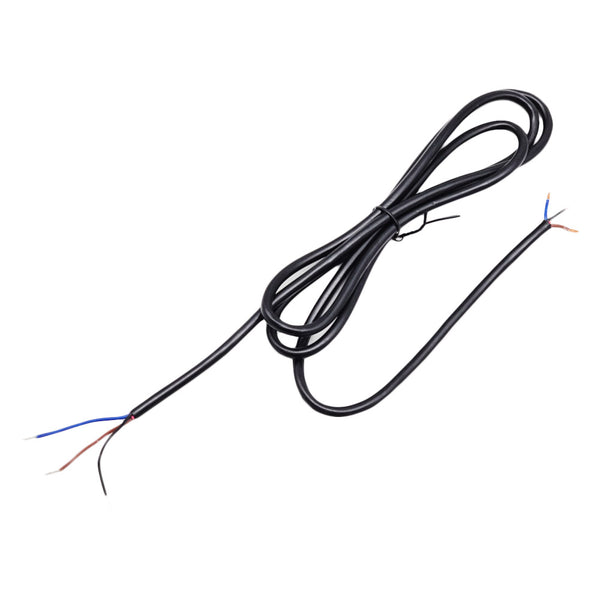

4) Connect the positive pole of DC power supply to the brown wire of the controller and connect the negative pole of DC power supply to the blue wire of the controller.
CAUTION: Do not connect AC power directly to the controller!

Operation:

1. Operation via the touch control handle:
Attention: The handle is operated by touch control. The touch sensitivity can be automatically calibrated when powered on for the first time. Hands are prohibited from touching the handle when powered on to prevent interference with the sensitivity calibration and affect the operating sensitivity.

1) Press and hold the ▲ button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the ▼ button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.
3) Press any of the button 1, 2, or 3 on the control handle, two linear actuators will automatically move to the position memorized by that button and then automatically stop.
Note: You will need to first memorize three positions into these three buttons.
4) The LED display on the control handle will display the stroke position data in real time. For example, the number 03.5 means that the linear actuators have reached the stroke position of 35MM.

2. Operation via the remote control: (The remote control of the synchronous controller has two control modes, interlocking mode and momentary mode, please select a control mode you need when ordering.)
2.1 Momentary Control Mode:
1) Press and hold the button ▲ of the remote control, two linear actuators extend out at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.

2.2 Interlocking Control Mode:
1) Press the button ▲ of the remote control, two linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press the button ▲ again to stop two linear actuators at the same time.
2) Press the button ▼ of the remote control, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press the button ▼ again to stop two linear actuators at the same time.

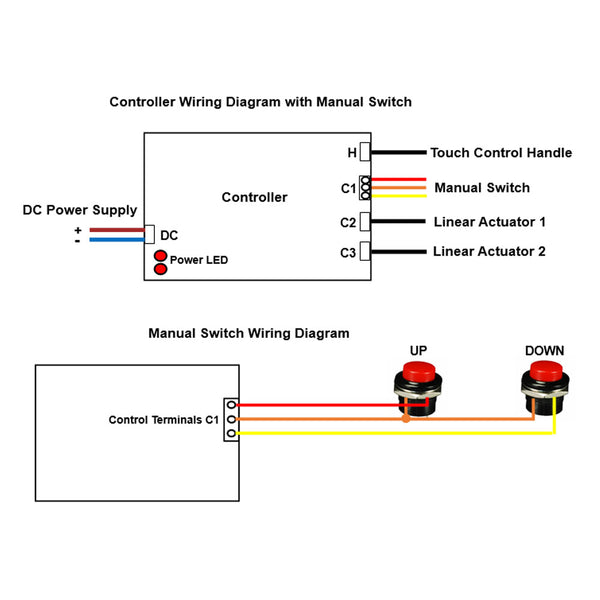

3. Operation via the manual switch:

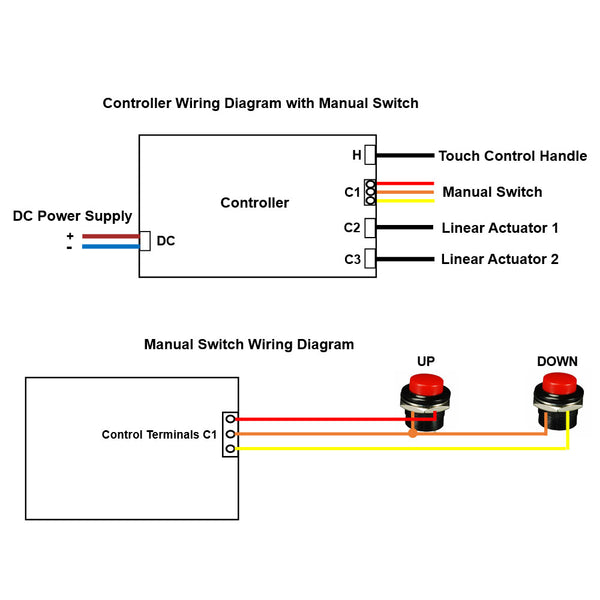

You can connect an external manual switch (model 0040025) to this controller and then operate two linear actuators through it.
1) The manual switch has an UP button and a DOWN button, and each button has two normally open terminals 3 and 4.

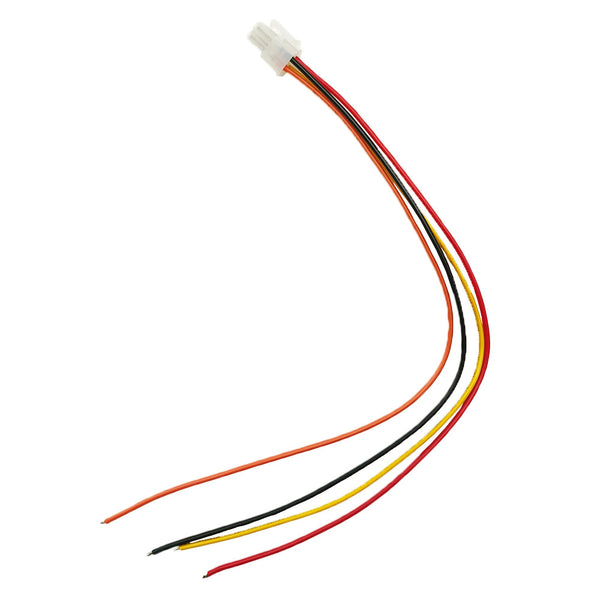

2) Connect a four-conductor cable to the controller's manual switch port C1, and this cable has four wires: red, yellow, orange, and black wire.
3) Connect terminal 3 of two buttons to the orange wire, connect terminal 4 of the UP button to the red wire, and connect terminal 4 of the DOWN button to the yellow wire.
The operation:
1) Press the UP button of the manual switch, two linear actuators extend outward at the same time. During operation, you can also press the button UP again to stop two linear actuators at the same time.
2) Press the DOWN button of the manual switch, two linear actuators retract inward at the same time. During operation, you can also press the button DOWN again to stop two linear actuators at the same time.

How to memorize three stroke positions:
1) The controller can memorize total three stroke positions, and each button memorizes one stroke position.
2) First operate two linear actuators to the first suitable stroke position that you need to store, then press and hold the button 1 of the control handle for about 3 seconds, the stroke value on the LED display will flash. This means that the current stroke position is already stored in button 1.
3) You can continue to store the other two stroke positions into the button 2 and 3 by following the operation above.

Reset Function:
When the LED display on the control handle shows the fault code, you need to reset the system as follows.
Reset operation: Press and hold the <R> button of the control handle until all linear actuators are reset to the bottom, and the LED display on the control handle shows "00.1", then release the <R> button.

How to pair the transmitter to the controller:
Notice: We have paired the transmitter to the controller before leaving the factory.
1) You need to open the controller case, then you can see a small RF receiver board and there is a small learning button on the board.
2) Press the learning button on the receiver board for 1-2 seconds, signal LED on the receiver board turns on, this indicates that the controller enters the learning status.
3) Press any one button on the transmitter, if signal LED goes off, this indicates that the pairing is successful.
4) The controller can learn several transmitters with different codes.

How to delete all transmitters codes stored in the controller:
We have paired the transmitter to the controller, if you don’t want the controller to work with the transmitter, you can delete all transmitters codes stored in the controller.
Operation: Quickly and continuously press the learning button on the receiver board 8 times, then release the learning button, the signal LED on the receiver board flashes 8 times and then goes off, this indicates that all stored codes have been deleted successfully.

Note:
1. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator. This kit does not contain fixed mounting brackets, please buy them from the drop down menu.
2. You need to use a DC12V/10A or DC24V/5A switching power supply to power this kit. This kit does not contain this power supply, please buy it from the drop down menu.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
